AR 3D VIEW

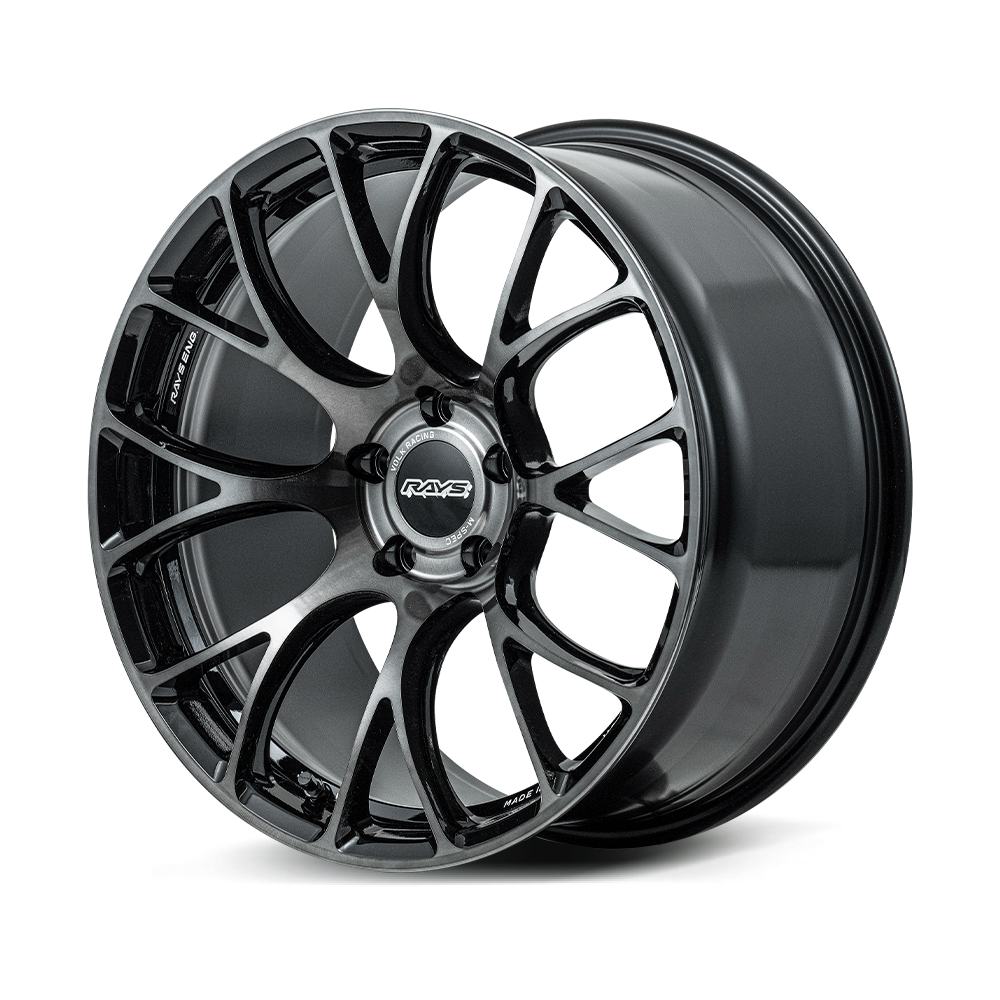

Pressed Black Clear (KK)

AR 3D VIEW

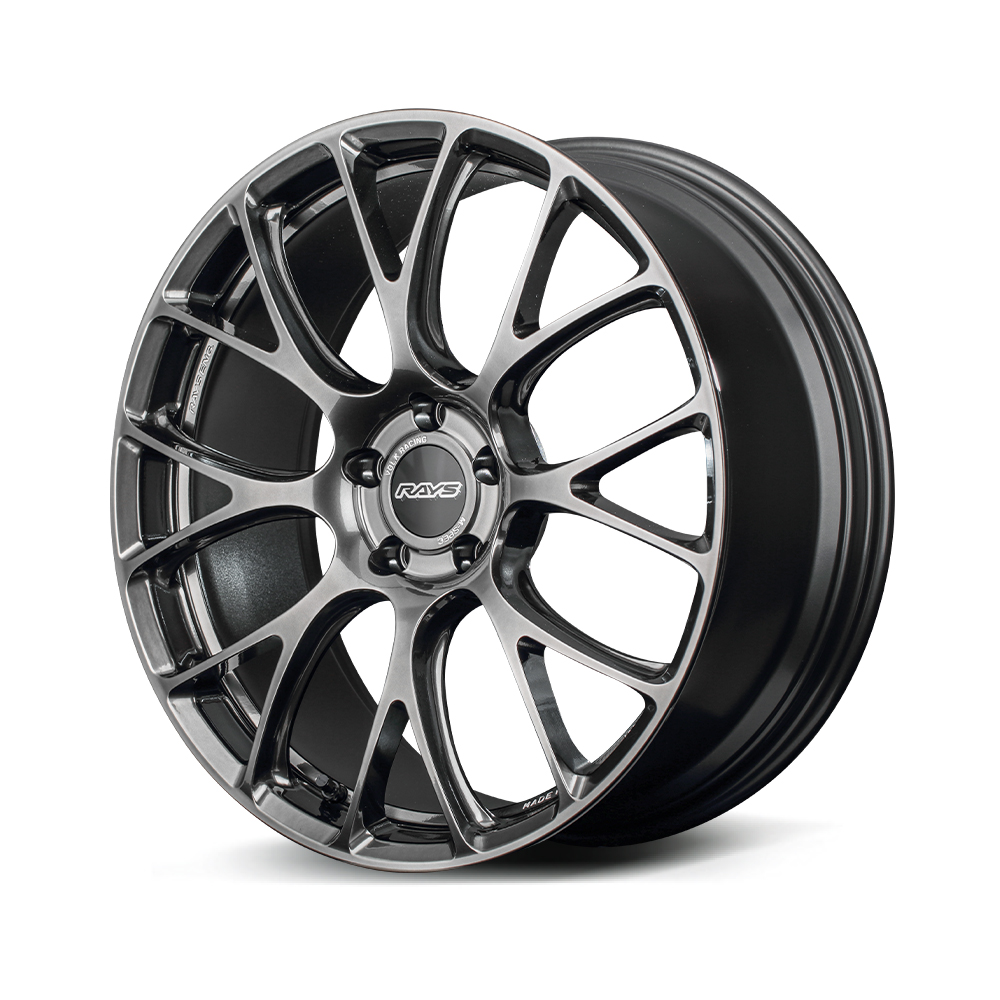

Shining Black Metal (HM)

Sparkle Dark Silver & Jet Black

The VOLK RACING G16 is different from many mesh design wheels in that it is designed with the ""non-stress lines"" used in the manufacture of racing wheels, which gives it this silhouette.
Non-Stress Line"" is a line spun by smooth curves and their surface structure that does not accumulate stress in one place.
The key point in constructing a wheel design is how to receive and disperse the increased stresses caused by the increased input value from the powerful grip on the road surface, and by combining this line with the cross spoke design with 8 intersections, stress dispersion is demonstrated and sharp and smooth response is conveyed to the driver. The 8 intersections of the cross spoke design are combined with these lines to distribute the stress and provide sharp and smooth response to the driver. The moment you install this wheel, you will surely feel the racing feeling.
In addition, the M-spec will debut as an overseas limited edition model from 2024.
These colors further emphasize the functional beauty of VOLK RACING.

No app required!
Easily experience AR with
just your smartphone!

>No app required! Easily experience AR with just your smartphone!

* Click here for a video on how to use AR WHEEL SIMULATOR.

Spec

Product Name

G16 M-SPEC

Size

19inch/20inch

Construction Method

Forged 1pc. Wheel
20inch Reverse Rim

Safety Standards

JWL+R Spec 2

Color

Pressed Black Clear (KK)
Shining Black Metal (HM)

Optional Color

OP-2: Extra ¥3,000 from KK color.
HL color, IG color: Extra ¥4,000
SZ color, SI color, HM color: Extra ¥7,000
※Optional color will have full/single body color finish (no Rim Edge/DC)

  • Dash White(DW)

  • Matte Black(MB)

  • Red(RE)

  • Diamond Black(DB)

  • MAG Blue(BL)

  • Black(BK)

  • Matte Gunbronze(MZ)

  • Matte Blue Gunmetal(GB)

  • Gunmetal(GM)

  • Gold(GO)

  • Diamond Silver(DS)

  • Dark Gunmetal(DG)

  • Hyper Blue(HL)

  • Racing Green(IG)

  • Metallic Red(MR)

  • Shining Light Metal(SI)

  • Shining Black Metal(HM)

Optional

Vehicle Specific Parts Set

Optional Parts

Size / Spec

SIZE :

P.C.D. :

SIZE FACE INSET Hub
Clearance
(mm)
HOLE P.C.D. HUB
BORE
(φ)
DRILL
(φ)
COLOR PRICE CALIPER
CLEARANCE
DISK
PROTRUSION
(mm)
LOAD
(lbs)
CODE
19x8.5J F1 45 5 112 66.6 29-15 KK ¥109,000 MERCEDES AMG A 45 4MATIC(W176),BMW X1(U11),X2(F39),VW GOLF(Ⅴ/Ⅵ/Ⅶ) 6.1 1,587 06919854520KK
19x9J F3 30 5 112 66.6 29-15 HM ¥111,000 BMW 530i(G30)Fr. TOYOTA GR SUPRA(DB)Fr. 4.9 1,587 06919903020HM
19x9.5J F3 32 5 112 66.6 29-15 HM ¥112,000 BMW 320i(G20)Rr,530i(G30)Rr. BENZ E350(W212)Rr,CLS450 4MATIC(C257)Rr. TOYOTA GR SUPRA(DB)Rr. 4.9 1,587 06919953220HM
19x10.5J F4 35 5 114.3 73.1 29-15 KK ¥113,000 ▽▼θη■⊿◎#△▲□αβγ○●Ω★◇◆〓 2.6 1,587 06919053595KK
20x8.5J F1 38 (38) 5 114.3 73.1 29-15 KK ¥123,000 ▽▼θη■⊿◎#▲□αβ●◇◆〓 4.3 1,587 06910853895KK
20x9J F3 25 5 112 66.6 29-15 HM ¥125,000 BMW 530i(G30)Fr. AUDI S4 Avant(8WCWGF) PORSCHE Macan S(95BCTM) 6.2 1,587 06910902520HM
20x9.5J F3 38 5 114.3 73.1 29-15 HM ¥126,000 η⊿◎α●◇◆〓 6.2 1,587 06910953895HM

Caution
5H-P.C.D.108/112/120: Cannot fit Volvo XC90 (Plugin Hybrid), Mercedes (GL class, GLS Class, R550 4 Matic, R350 4 Matic, 2012- ML63 4 Matic, S550 Plugin Hybrid, V class (W447), GLE 63S 4matic, GLE class (V167), EQC400, Rolls Royce, Bentley, Maybach (57, 62, GLS600), BMW X5 (7 seater), X5 (F15), X5 PHV, X6 (Active Hybrid), X7, iX, iX3, Alpina XB7, Audi e-tron, Land Rover (5-120), Tesla (Model X), Century (GRG75).
* :Tuner size. Sample fitments are for reference only.

[ CALIPER CLEARANCE ]
▼: IMPREZA (GDB 4POT)
▽: IMPREZA (GDB & GRB 4POT)
Θ: WRX STI (4POT)
η: WRX STI (6POT)
■: IS, GS, RC, CROWN (210), MARK-X (3.5L)
⊿: IS-F
◎: RC-F
#: SILVIA (S15)
△: SKYLINE (R34GT-R, CPV35, CKV36, HV37, RV37/400R)
▲: SKYLINE (R34 GT-R)
□: SKYLINE (CKV36, HV37, RV37/400R)
α: SKYLINE (CKV36, HV37), FUGA(Y51)
β: SKYLINE (HV37)
γ: SKYLINE (CPV35)
○: FAIRLADY Z (Z33, Z34, RZ34)
●: FAIRLADY Z (Z34)
Ω: FAIRLADY Z (Z33)
☆: LANCER EVO.(VII~IX, X)
★: LANCER EVO.X
∑: LANCER EVO.(VII~IX)
◆: GT-R (R35/φ380 rotor)
◇: GT-R (R35/φ380, φ390 rotor)
〓: GR YARIS (RZ)
Ψ: ROADSTER (ND)/124 Spider Brembo
※CALIPER CLEARANCE are for reference only and do not guarantee inspection, and/or the size mandated by local authorities. Selecting sizes is by your own judgement and we recommend consulting fitments with a professional outlet.

Features

Two newly adopted colors

"Two new M-SPEC colors, top surface DC/black clear and high-brightness silver, have been adopted.
These colors further emphasize the functional beauty of VOLK RACING's unique design."

Non-stress line

The cross spokes with 8 intersections composed of non-stress lines are combined to provide stress dispersion and transmit sharp and smooth response to the driver.

Flat center part

"The center part was designed with the installation of a center cap in mind, creating a sense of unity with the wheel through seamless installation.
The center part is machined as an M-SPEC feature."
